Side Contact Pogo Pin
Pexon Professional Customization
Side Contact Pogo Pin
Spring Loaded Side Contact Pin Catalog
Side contact pogo pin, also known as spring loaded side contact pins, side contact spring contacts, or through hole spring loaded side contact pins, are primarily used to establish reliable electrical or signal connections between components. They ensure consistent conductivity and stable contact performance in various electronic applications.
Side Contact Pogo Pins Overview
Side Contact Pogopin Product Details
With advanced technology and expert craftsmanship, we create durable, high performance custom side contact pogo pin / side contact spring connector pin tailored to each project’s needs.
What is side contact pogo pin
Side contact pogo pin is a type of spring loaded electrical connector designed to make contact on the side surface of a mating pad, rather than pressing straight down like a traditional pogo pin. Inside, it has a plunger, spring, and barrel, but the plunger is shaped or angled so it applies lateral force.
Side contact pogo pins are commonly used when vertical space is limited, when the mating surface is on the edge of a PCB, or when designers want better tolerance for misalignment. They are also useful in rotating, sliding, or docking connections.
Typical applications include wearable devices, smart phones, battery contacts, test fixtures, and compact consumer electronics. Their main advantages are compact design, reliable contact under vibration, and flexibility in mechanical layout.
How to install side contact pogo pin
Installing a side contact pogo pin requires careful mechanical and electrical alignment. First, prepare the PCB or housing with the correct mounting hole or slot, ensuring dimensions match the pogo pin specifications. Insert the pogo pin into the hole so that the side contact area faces the mating pad. Depending on the design, secure the pin by press fit, soldering, or adhesive fixing. For soldered types, apply controlled heat to avoid damaging the internal spring. Next, align the mating PCB or contact surface so it provides sufficient lateral compression when assembled. Verify that the pogo pin can move freely and maintains consistent contact force. Finally, test continuity and mechanical reliability under vibration or repeated mating cycles to ensure stable electrical performance.

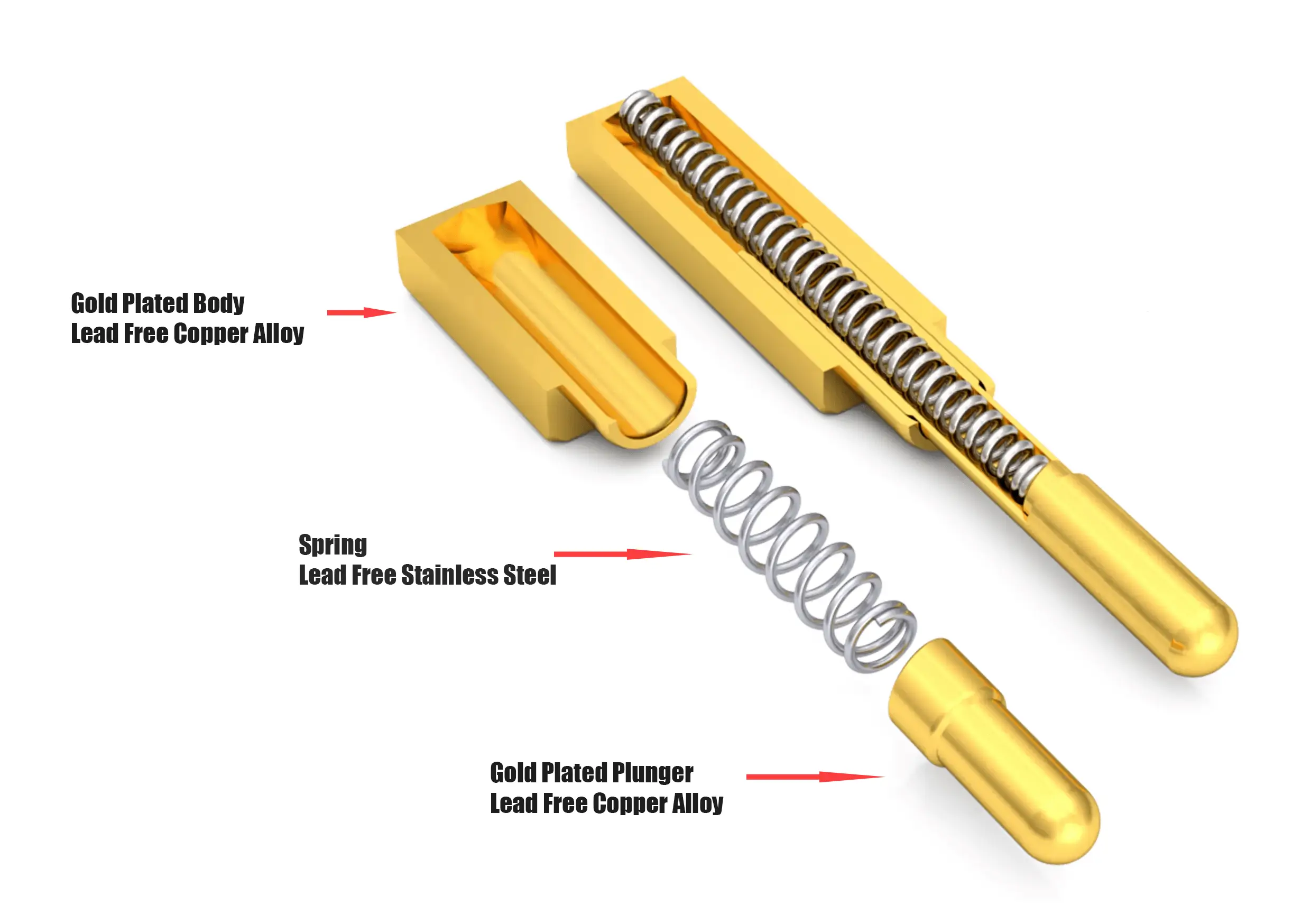

side contact pogopin material & parts
A side contact pogo pin is a specialized type of pogo pin connector designed with a bevel structure to enable lateral electrical contact. It is a built in spring connector commonly used in compact electronic designs. The connector typically consists of four main parts: the plunger, solid pin, spring, and body. The plunger and solid pin are usually made of brass or phosphor bronze with gold plating to ensure low resistance and corrosion resistance. The internal spring provides stable contact force. This structure supports SMT automatic reflow soldering, offers high soldering strength with PCB boards, ensures stable and reliable connections, and delivers a long service life with excellent durability.

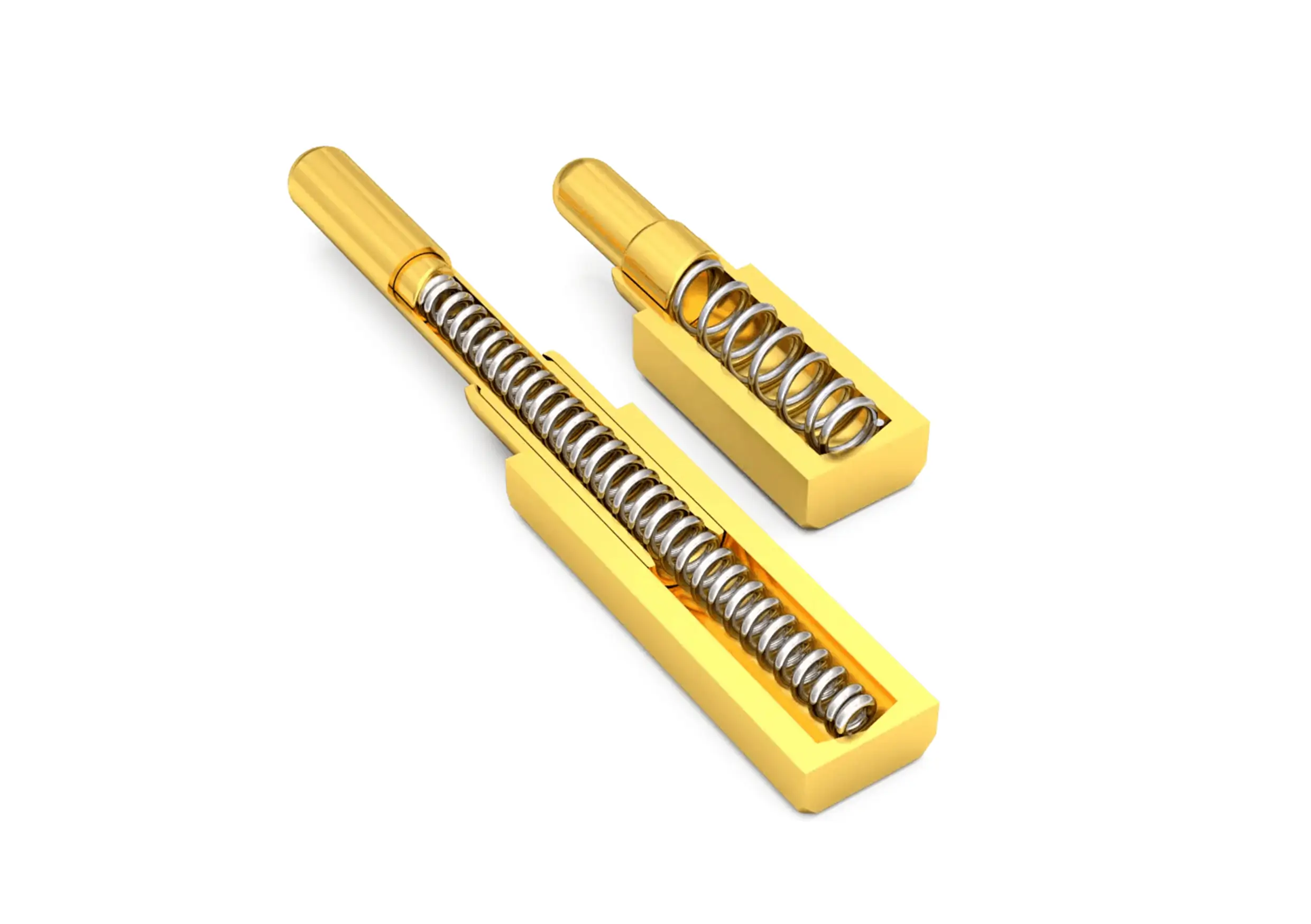

side contact pogopin Internal structures
Side contact pogo pin adopts plunger bevel structure and plunger inner hole bevel structure. The plunger bevel structure features a precisely machined angled surface on the plunger, which provides a defined side contact area and controlled movement space. The plunger inner hole bevel structure is formed inside the plunger to guide alignment with the spring and body, ensuring smooth, centered positioning during compression. Together, these two structural designs improve mechanical stability, reduce friction and wear, and enhance dimensional tolerance. The optimized bevel geometries support compact assembly, consistent contact positioning, and long term durability in high density electronic connector applications.
How Side Contact Pogo Pins Work
Side contact pogo pins work by converting axial spring force into lateral contact force. Contact force and contact resistance are closely related: higher and more stable contact force results in lower contact resistance and better electrical reliability. Inside the pogo pin, the spring pushes the plunger forward, while the beveled structure guides the plunger to press sideways. This generates a controlled lateral force that keeps the gold plated needle firmly in contact with the inner wall of the needle tube. As a result, the contact area remains stable, oxidation is reduced, and extremely low, consistent contact resistance is achieved for reliable electrical connection.
Side Contact Pogo Pin Contact Resistance
This chart illustrates that during the full compression and release stroke of the side contact pogo pin, the spring force increases smoothly while the contact resistance remains extremely low and stable. This demonstrates a well engineered internal structure, precise machining tolerances, and high quality vacuum blind hole plating that together ensure reliable electrical connectivity and long term performance stability.

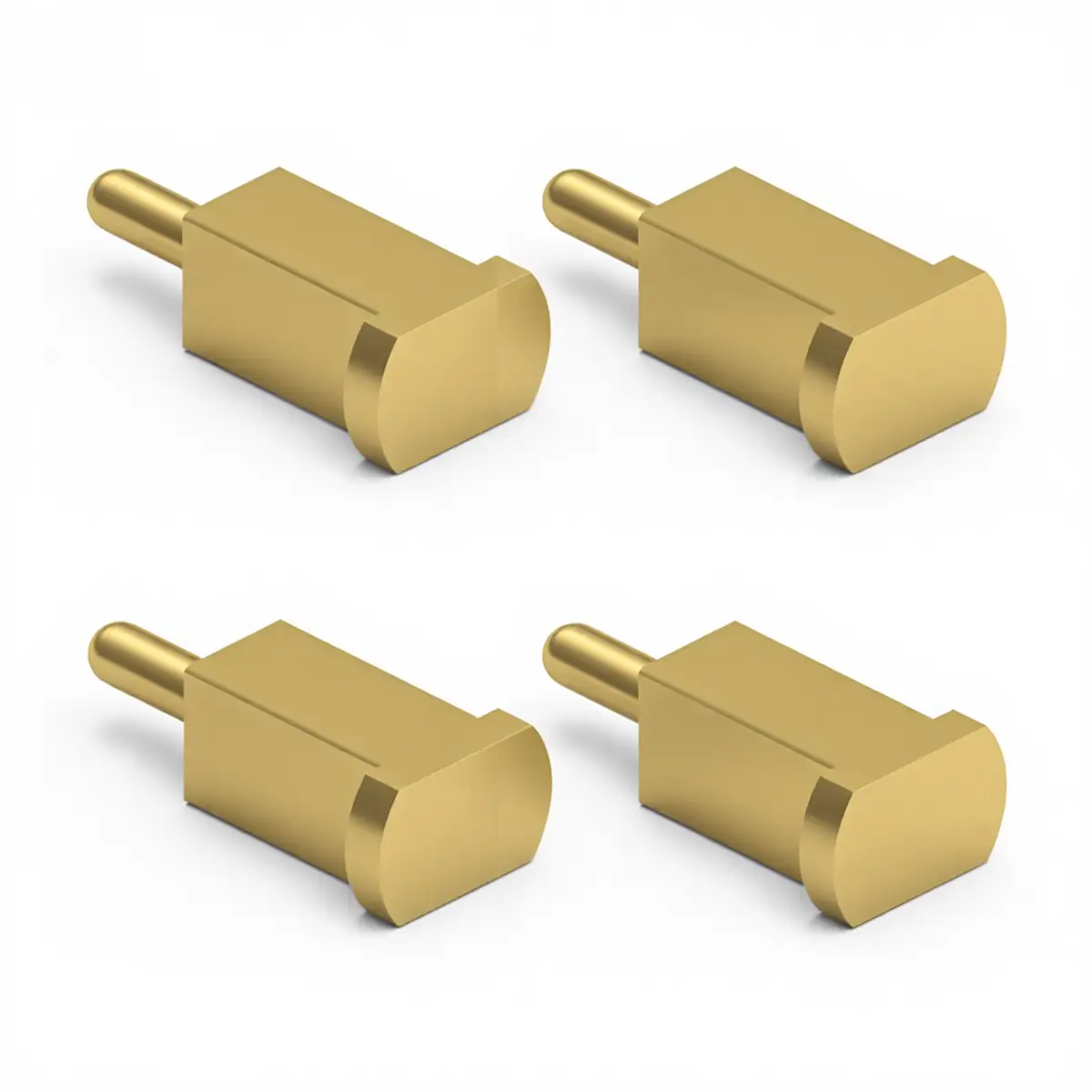

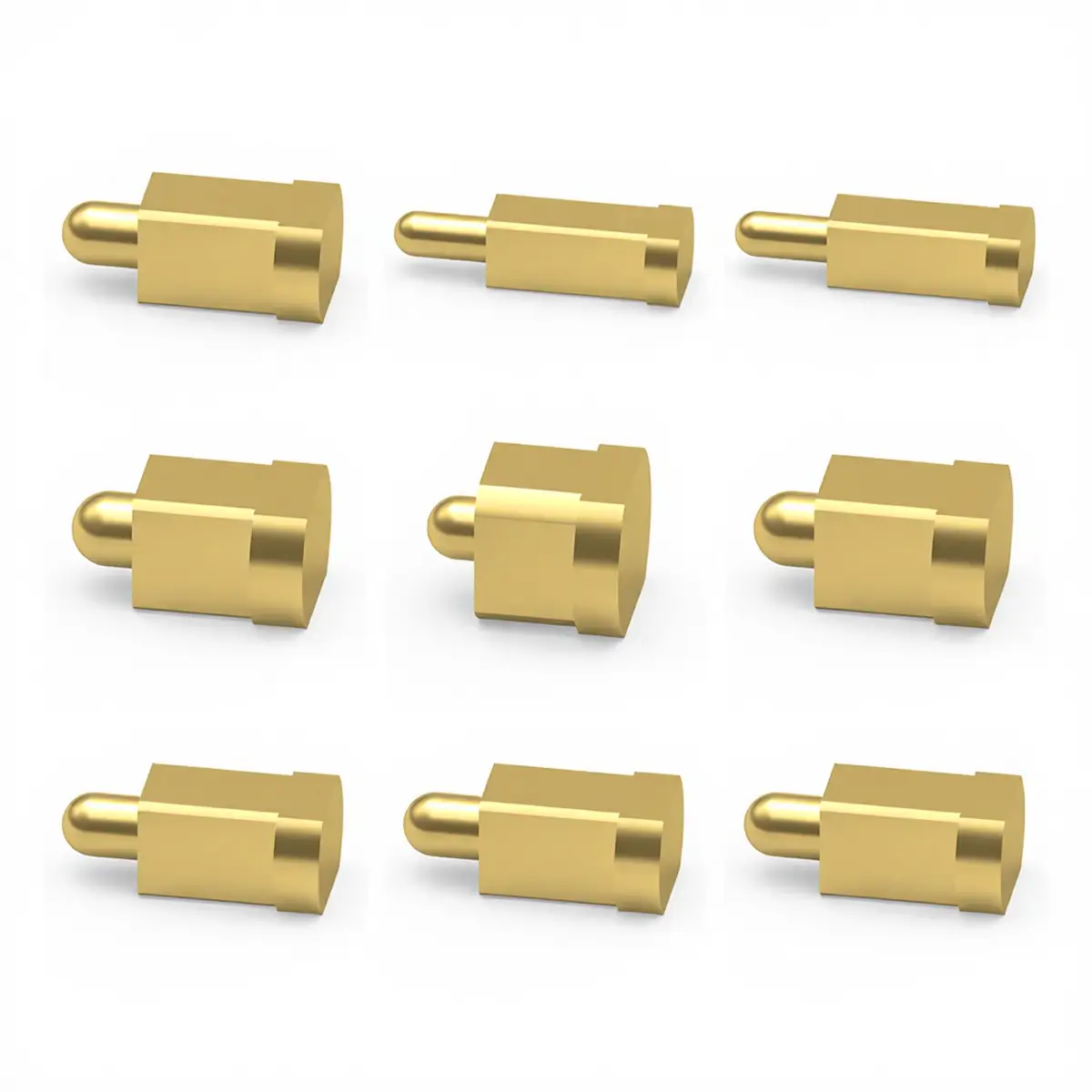

types of spring loaded side contact pin
Custom Guide of Side Contact Pogo Pin
Select side contact pogo pins based on travel length, spring force, contact material, and plating to achieve optimal performance, reliability, and durability.
Fully customizable to meet any electrical, mechanical, or environmental requirements.
| Side Contact Pogo Pin Type | Full Stroke (mm) | Initial Height (mm) | Working Height (mm) | Body Height (mm) |
|---|---|---|---|---|
| Mini Side Contact Pogo Pin | 0.40~0.80 | 1.80~3.20 | 1.30~2.70 | 1.50~2.50 |
| Low Profile Side Contact Pogo Pin | 0.80~1.00 | 2.50~4.50 | 1.80~3.80 | 1.80~3.00 |
| Standard Side Contact Pogo Pin | 1.00 | 3.20~6.00 | 2.20~5.20 | 2.50~4.00 |
| Long Stroke Side Contact Pogo Pin | 1.50 | 4.50~8.50 | 3.20~7.20 | 3.00~5.00 |
| DIP Side Contact Pogo Pin | 1.00~2.00 | 4.80~10.00 | 3.50~8.80 | 3.50~5.50 |
| Side Contact Pogo Pin with Locating Peg | 1.00~2.00 | 4.20~8.00 | 3.00~6.80 | 2.80~4.80 |
| Long Reach Side Contact Pogo Pin | 2.00~3.50 | 7.00~14.00 | 5.20~12.00 | 4.50~7.00 |
Side Contact Spring Loaded Pin Performance
Side Contact Pogo Pin Technical Parameters
Pexon custom pogo pins are carefully crafted using only the finest materials.
Our production team offers superior craftsmanship with over 10 years of experience working with custom side contact pogo pins / side contact pogo pin connectors.
| Items | Details |
|---|---|
| Material | Plunger: Lead Free Copper Alloy |
| Body: Lead Free Copper Alloy | |
| Spring: Stainless Steel | |
| Solid Pin: Lead Free Copper Alloy | |
| Main Technical Parameters | Standard state: |
| Operating temperature: -40~+120°C (Standard) | |
| Operating humidity: 20-85% RH | |
| Storage temperature: -10~+50°C | |
| Storage humidity: 20-85% RH | |
| Rating voltage: 36V AC/DC (Standard) | |
| Rating current: 2A/Pin Continuous (Standard) | |
| Contact resistance: 30 mΩ Max. (Standard) | |
| Withstanding voltage: 250V AC, 1 Minute | |
| Insulation resistance: 500 MΩ Min. | |
| Durability: 10,000 Cycles (Standard) | |
| Working Spring Force: 40~120 gf (Standard) | |
| Electroplating | Plunger: Ni Plating 1.4μm, Gold Plating 0.30μm |
| Body: Ni Plating 1.4μm, Gold Plating 0.10μm | |
| Solid Pin: Ni Plating 1.4μm, Gold Plating 0.10μm | |
| Contact Type | Vertical Contact Type |
| Installation Method | SMT automatic placement machine + Reflow soldering |
| Plugin machine + Wave soldering | |
| Environmental Protection Standard | Comply with EU RoHS and Alizn standards |
Upload Your CAD File
To begin, provide your contact details and upload the CAD file or detailed product requirements of your design. This allows us to create a detailed 3D model of the part or prototype you're looking to produce.
Receive a Quote & Design Review
Within 12 hours, we’ll send you a detailed quote along with Design for Manufacturability (DFM) feedback. This ensures the feasibility of your project and gives you a clear idea of the costs involved.
Confirm Your Order & Begin Production
Once you approve the quote and design, we’ll proceed with the production of your custom side contact pogo pins.
Shipping & Delivery
Your project enters our manufacturing queue the morning after we receive your approval. On average, custom orders ship within 10-15 business days. In stock products and samples ship within 48 hours.
Just 4 Steps
Custom Side Contact Pogo Pin Quotation Process
From detailed consultation to final delivery, we make custom pogo pin orders simple and easy. We pride ourselves on providing exceptional customer service by anticipating your needs, offering customized solutions and on time delivery.
Side Contact Spring Loaded Pins Electroplating
Side Contact Pogo Pin Surface Treatment
Various surface treatment methods to meet your needs
Electroplated Gold - Golden Yellow

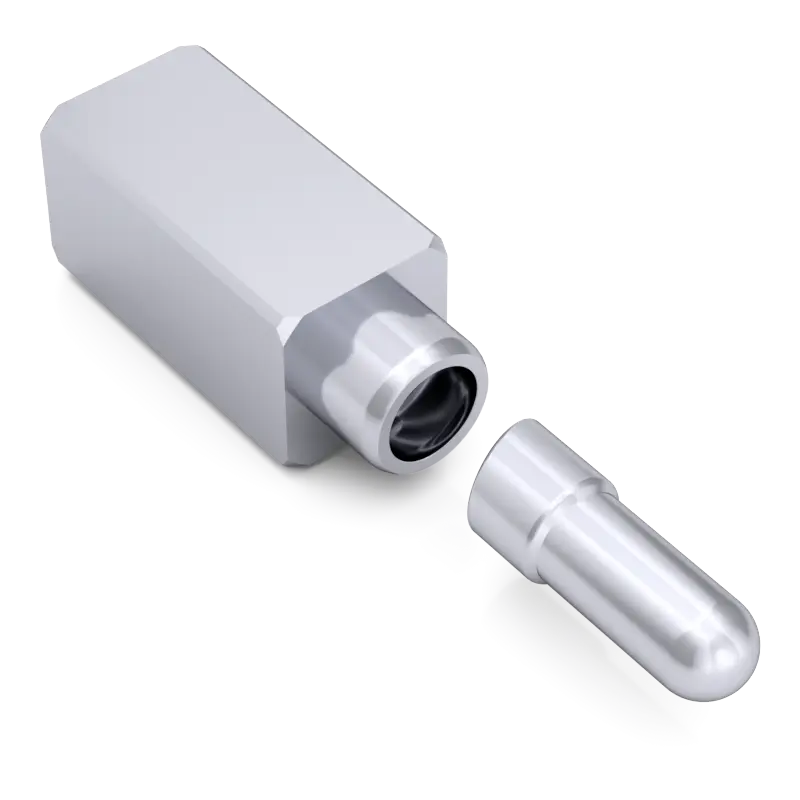

Electroplated Nickel - Silver White

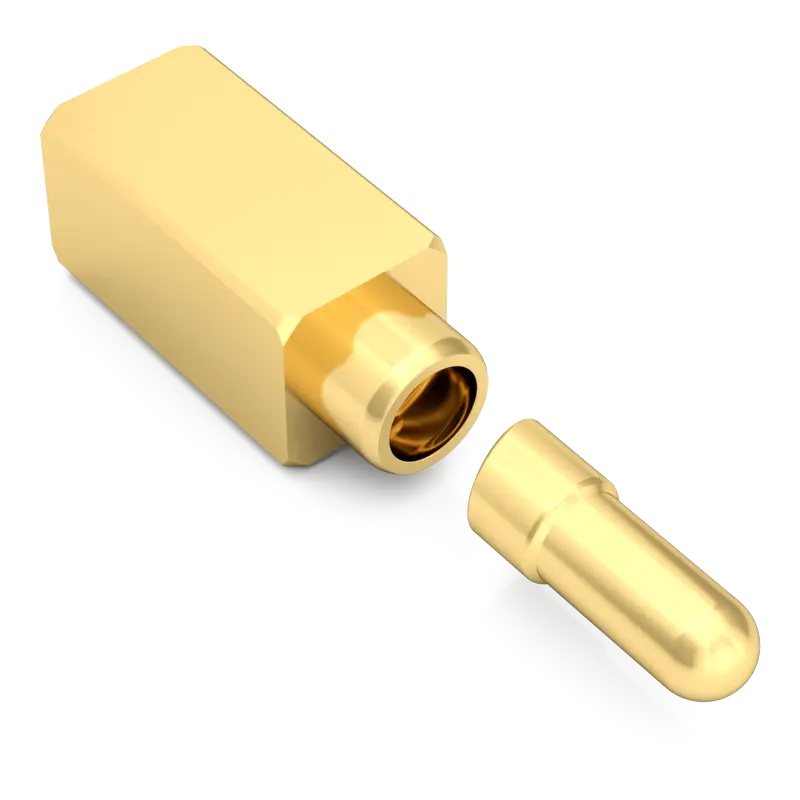

Before Electroplating - Brass Color
Packaging Options for Side Contact Pogopin
Pogo Pin Packaging Method
Enabling you to move seamlessly from receiving to production without compromise.

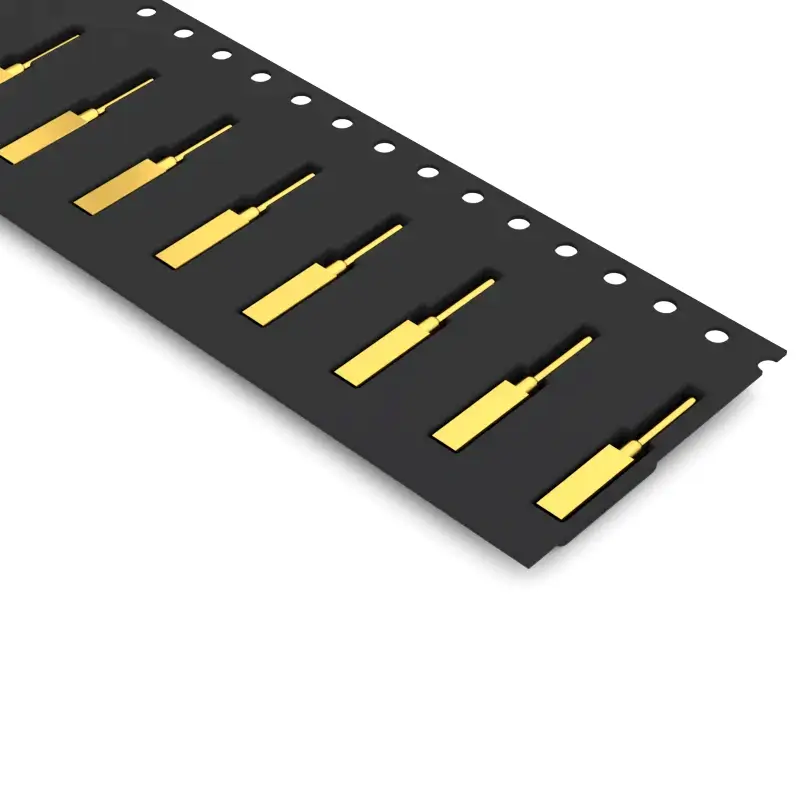

Pogo Pins Vacuum Carrier Tape Packaging

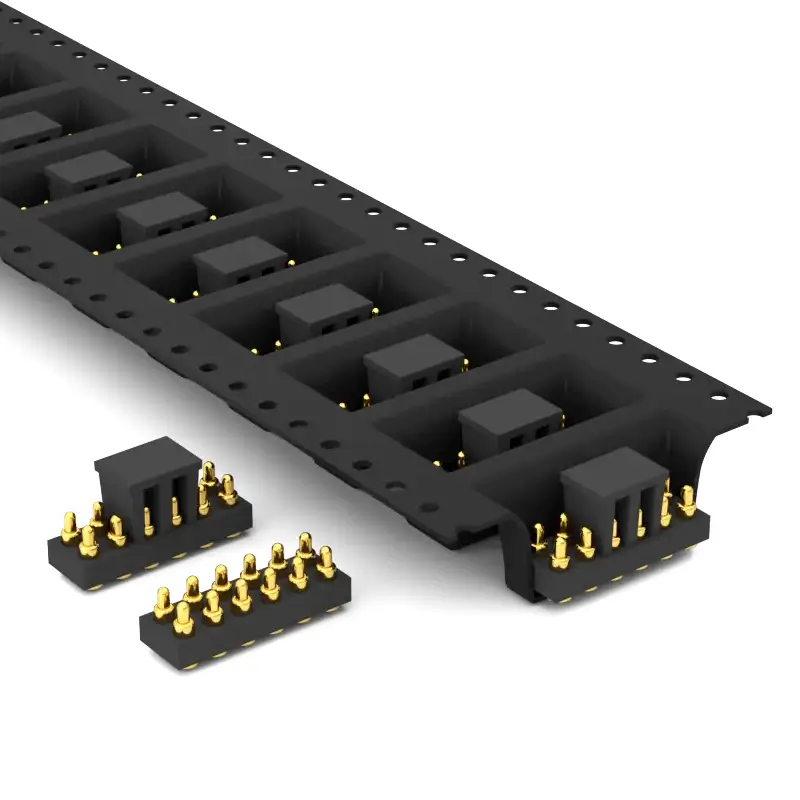

Pogo Pin Connector Vacuum Carrier Tape Packaging
Side Contact Pin Customization Process
From Design to Quality Control
Every Step Tailored to Perfection
Pexon side contact pogo pin customization process ensures precision, quality, and efficiency at every stage. From innovative design and advanced production to rigorous quality control, we transform your ideas into high performance solutions. Serving diverse industries, we specialize in creating prototypes and full scale production, turning your vision into reality with unmatched expertise and attention to detail.
Professional Equipment For Side Contact Springloaded Pin
The Equipment Behind Custom Pogo Pins
Our professional equipment provides complete solutions for pogo pin customization, ensuring high precision, efficiency, and cost effectiveness.
From design to production, we meet strict quality standards, addressing complex shapes and performance needs.
automatic lathe
High speed auto feeding turning
milling machine
Complex precision machining
stamping press
High accuracy & rigidity
spring coiling machine
Free height & wire diameter precision
electroplating machine
Uniform, clean
coordinate measuring machine
Dimensional & tolerance verification
Pexon Pogo Pin
Related Pogo Pin
From initial prototypes to large scale production, we ensure top quality results and help you achieve your manufacturing goals.
Pogo Pin Professional Guide
Pogo Pin Knowledge
Pexon explores with you every factor that influences your choice design, functionality, durability, price factors, process, customization options
Side Contact Pogo Pin FAQ
Pexon high performance pogo pins, ideal for functional tests or end use applications. Explore our FAQs to discover more about our pogo pin solutions and related technical support.
We need drawings or key specs: size, stroke, force, current, plating, and usage.
Standard parts: 3–7 days. Custom parts: 2–4 weeks depending on complexity.
Yes, sample testing can be provided before mass production.
Yes, we support full customization based on size, force, plating, and structure.
Yes. Our engineering team can provide suggestions on structure, plating, tolerance, and manufacturability.
Yes. Material certificates and quality inspection reports can be provided if required.
Yes. Key dimensions can be checked according to your drawing requirements.
We offer standard packaging and custom packaging based on customer requirements.
Yes. Customized labels and packaging identification can be arranged.
Yes. We can sign an NDA to protect customer drawings and project information.
